About

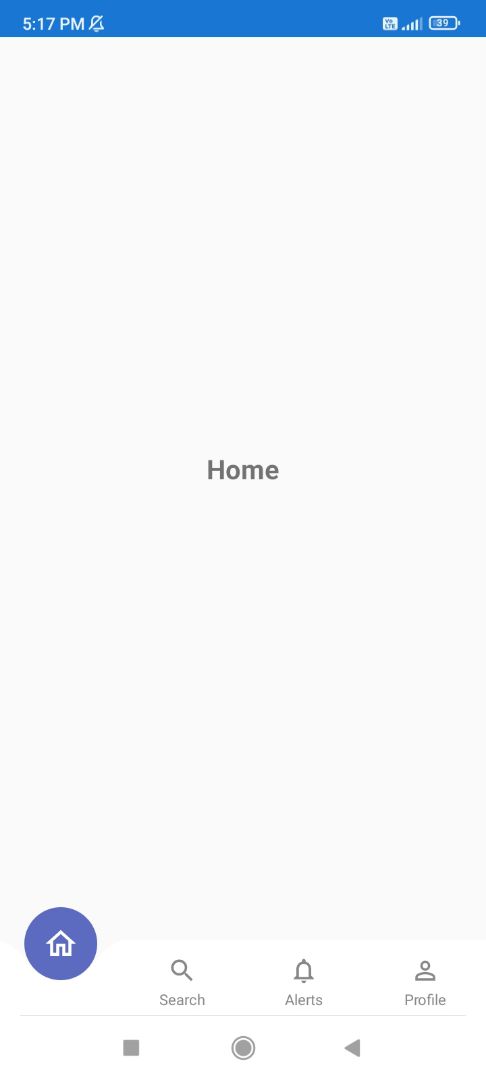

A high-end Bottom Navigation Bar for Sketchware Pro. I have heavily modified the original Kotlin logic to ensure it is 100% buildable and stable within the Sketchware environment.

📂 File Structure

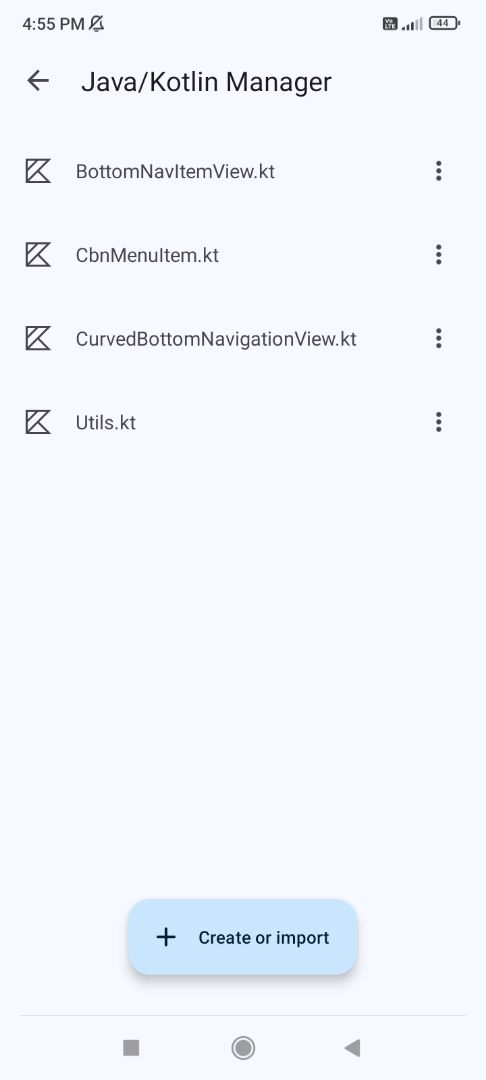

1. Java/Kotlin Manager (The Brains):

CurvedBottomNavigationView.kt: Handles Bézier curve drawing, FAB movement, and "Anti-Ghosting" (hiding icons under the FAB).

CbnMenuItem.kt: Data class for menu items (Icons, IDs, Titles).

BottomNavItemView.kt: Manages individual tab states and text/icon positioning.

Utils.kt: DP/PX converters ensuring the UI looks perfect on all screens.

2. Resource Manager (res/values):

attrs.xml: Defines custom attributes (colors/styles) for your XML.

dimens.xml: Controls FAB size and bar height without touching code.

⚠️ Critical Setup (Must Read)

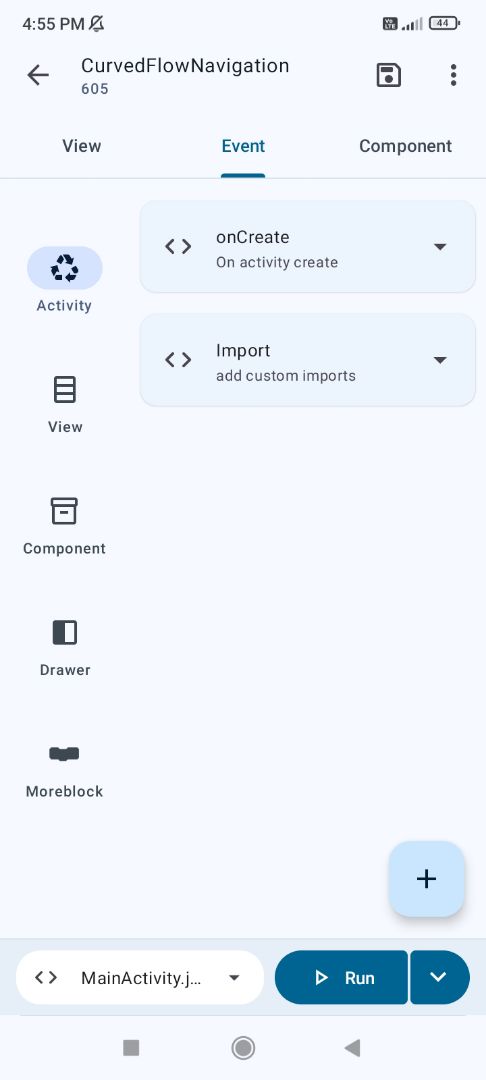

Package Name Sync: If you rename your app package, you MUST update the package line at the top of all 4 Kotlin files and the import lines in Activity.

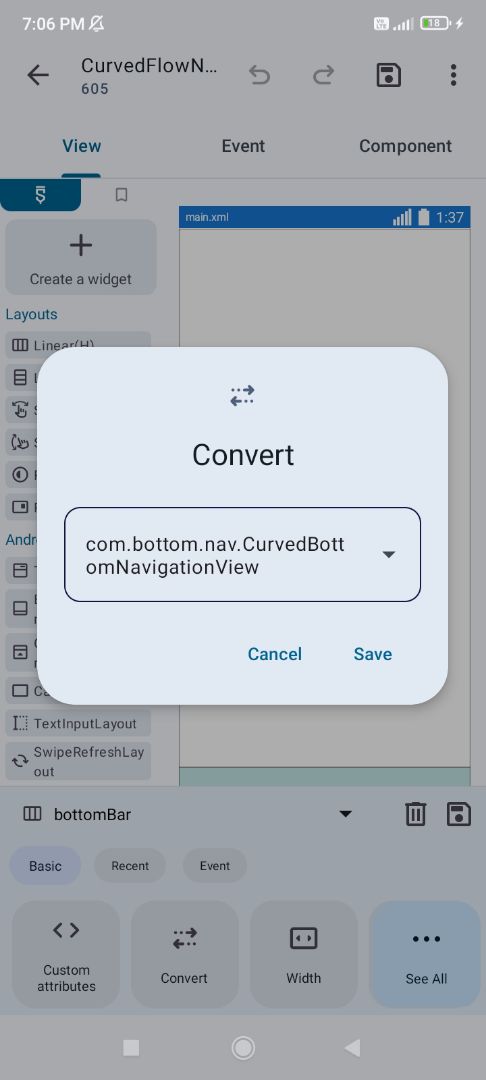

Convert Class: Convert your Bottom Bar (Linear) to your full package path: [your.package.name].CurvedBottomNavigationView (Example: com.my.app.CurvedBottomNavigationView).

🎨 Customization (XML Attributes)

app:cbn_bg: Changes the background color of the main navigation bar. app:cbn_fabBg: Changes the background color of the floating circle (FAB). app:cbn_selectedColor: Changes the color of the icon and text when a tab is active. app:cbn_unselectedColor: Changes the color of the icons and text when they are inactive.
